Creating Roof

Creating Roof

old_roofs Let’s go further with our Revit tutorial. In the last tutorial, we learn about creating floor. Now we are going to create roofs. There are 3 ways to make this building component. By footprints, extrusion, and by face. In this tutorial, we will discuss about creating it by footprints.
In your Revit project, open your floor plan view: roof. We will create two roofs at this level. First, a slab surrounding our building as concrete gutter, and a sloped roof. (I hope I use the right term, not really familiar writing this in English).

Creating slab

Using footprint method is similar with creating floor. We will have to sketch it. You can access this tool from your ribbon, build group. Clicking this will bring you to sketch mode.

create roof

What we will do is exactly the same with what we were doing when creating floor. You can either using pick walls or by drawing lines. To create this slab, deactivate define slope.
define slopes
Click properties button at your ribbon. Change your family type to Generic – 125 mm.
roof properties

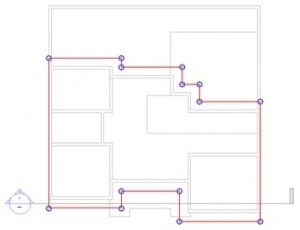

Draw your sketch as below. At this example, I create the left and right line by picking walls, and finish the rest by using line sketch with 500mm offset. You can change the offset value on option bar, then snap to your walls.

option bar

Don’t worry about the exact size. You can change the values as you feel appropriate. Remember: make sure it’s a closed polygon.

roof slab sketch

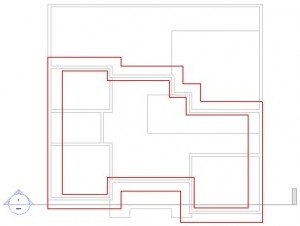

Now, change the offset value to 800, and create another polygon inside the first one.

sketch2
After you finish, click finish. When Revit ask your confirmation to attach your walls to this roof, select no. Review your model in 3D view if necessary.

Creating Sloped Roof

Next, we will add a sloped roof at this level. Open your roof’s level plan.
Activate roof by footprint tool. This time, make sure define slope option is active. Click properties, change ‘Base Offset from Level’ value to 200. This will create your roof 200 mm above the level.

base offset

Now, use the line mode for drawing your sketch. Change offset value in the option bar to 200. Create your sketch by snapping to the slab you created before.
roof_sketch
Click finish roof, and review your model in 3D view. Very easy, right? Let’s do some modifications. Open your roof plan view, then select your sloped roof. Click edit footprint from your Revit ribbon.

edit footprint

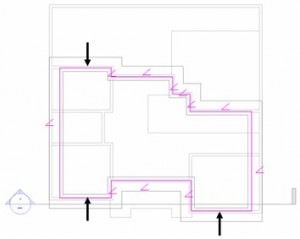

Make sure modify tool active. Hold [ctrl] key then click these lines below.
no_slope
Turn off define slope in your option bar. You will see the slope symbol disappear from those edges.
Now select two edges at the north (bottom) you’ve just modified. Hold [ctrl] for add objects to your selection set, then click your edges. Activate move tool from ribbon.

move

Click any where on your screen, move your pointer down. Type 300 then [enter]. This will add offset to these edges. Do the same with the other edge you modified. Move it to south for 300 mm. Click finish.
Let’s review our model in 3D view.

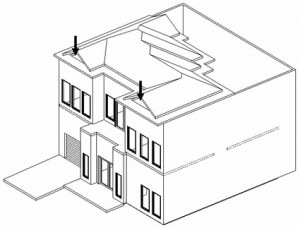

attach-wall
You can see there are gaps between your walls and roof shown by the arrows. Let’s fix this.
Select wall below the arrow, then click attach in your ribbon, modify wall group.

attach wall

Select your sloped roof. Do this step for every wall below edges that we’ve modified.
If you want to add pattern, you can read this tip: Add pattern to your roof.
In the next tutorial, we will create roof slab edges.
